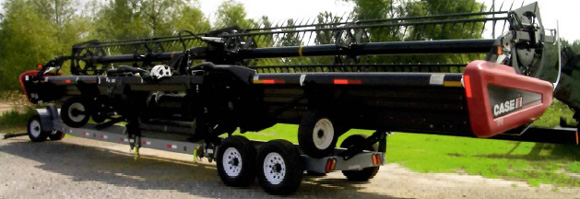

 Moving
wide grain heads doesn't need to be hazardous or worrisome.
It can be
as safe and easy as towing a legal width trailer on the
road, across bridges, and through farm gates. With
a Head Hauler, tight corners and low roof areas can
be utilized for convenient inside storage.
Don't take
a chance...safety is no accident!

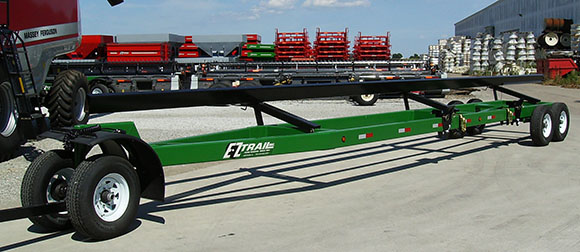

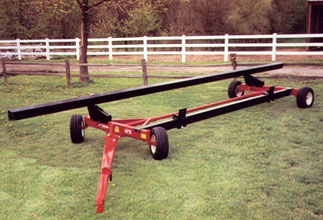

| E-Z Trail
Head Haulers are available in 3 sizes: 21' with 12'4"
wheel base, 26' and 31' with 15'10" wheelbase. They
are designed to fit all brands and models of combine

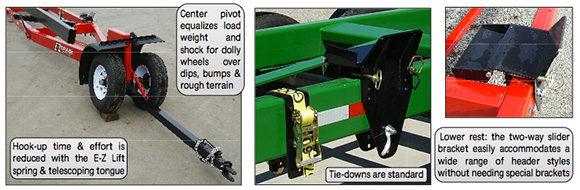

grain and corn heads. Standard features like extendable
"E-Z Hitch" tongue with spring lift assist, lifetime
accurate trailing, and wrench-free quick adjusting at
no extra cost...help you move ahead at a price that

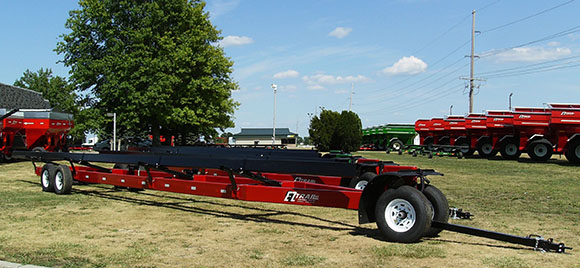

won't set you back! Available in RED
or GREEN. |
The long
upper rail & the lower brackets are easily adjusted
without tools to fit any brand or model
of grain head.
Standard
Tire: Low profile 20.5x8-10 D Range (8 ply) Optional
Tires: 20.5x8-10 F Range (10ply); 7.50-10E Range (10ply)
9.00-10 Flotation Tire 10 ply
|

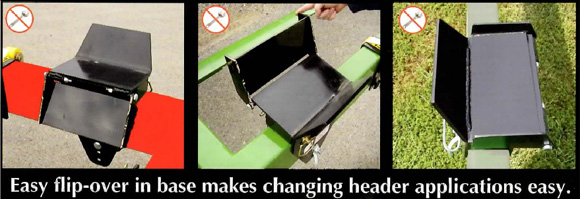

U-Brackets:
"Universal" fit for all brands and models, but especially
designed for JD, MF, and White pipe bottom grain tables.
They simply flip over out of the way for hauling any
corn head up to 12 row wide.

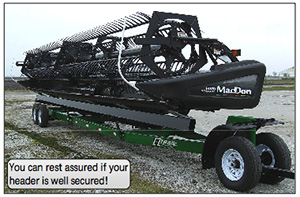

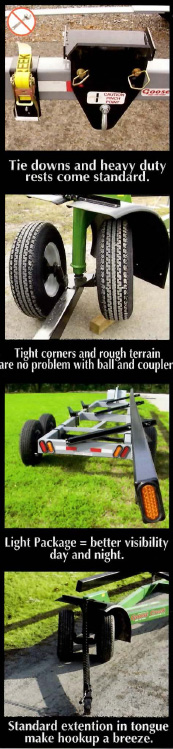

Ratchet
Tie Down:
10,000
Ib. test nylon strap secures expensive new grain or
corn heads without a scratch. |
 |
The
front spindles and tapered roller bearings of E-Z
Trail's famous steering are now weather shielded to
assure low maintenance, lifetime accurate trailing. |
OTHER OPTIONS:
*U-Brackets
- *Ratchet Tie Down Kit
*Combine Hitches
& special length tongues for towing behind combines.

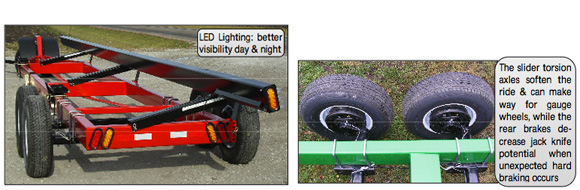

*Lighting Kit,
a necessity for use before sunrise and after sunset.
|
