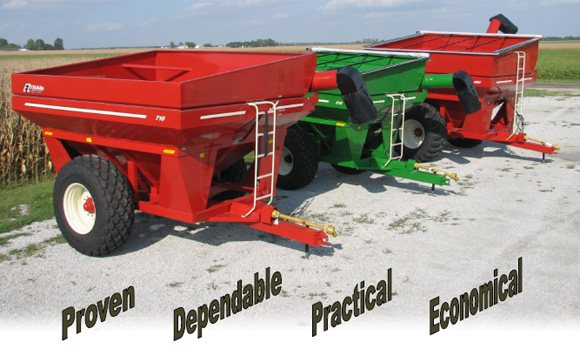

| Our Grain Carts
 PROVEN
E-Z TRAIL ADVANTAGES
- Perforated Front:
Visible Loading, Safer Unloading
- Center Auger:
Better Visibility When Loading
Tall Trucks & Trailers
- 14" Cupped Augers:
Unload Faster with Less Kernel Damage
- Stainless Steel
Flighting Edge:
Longer Wear Life
- Double Sealed Gearbox:
Cleaner Gear Lube
- Over-Center Linkage
Positive Auger Lock in Unloading Position
Available Options
- Roll Tarp
- Light Kit
- 1-3/4" PTO
- Weigh-Tronix Scale
- Hydraulic Drive
Kit
- 66-4300 x 25 Terra
Tires
New Improved Features
- Sliding 'stainless
steel' tube flow control is self-supporting, easily replaceable,
and protects the outer tube from wear.
- Auger is longer
and lower angled to unload faster and reach further.
- Upper concealed
hanger bearing-compression spring combination maintains auger
preload at the hinge point.
- Extension flares
out over auger for increased capacity & easier roll tarp
use.
Specifications
| SPECIFICATIONS
|
MODEL
510 |
MODEL
710 |
MODEL
860 |
| Approx. Capacity |
490 Bu. |
710 Bu. |
860 Bu. |
| Stnd. Tires |
New 18.4-26 |
New 24.5-23 |
New 30.5-32 |
| Opt. Tires |
New 23.1-26, Used
20.8-38 |
New 30.5-32 |
- |
| Spindle Diameter |
3-1/4" |
4-1/2" |
4-1/2" |
| Box Dimensions |
10' x 12' |
12' x 14' |
12' x 14' |
| Ht - Right |
9' 6" |
9' 11" |
11' |
| Ht - Left |
10' 6" |
11' 2" |
12' 6" |
| Length |
17' 4" |
18' 6" |
18' 6" |
| Discharge Ht. |
12' 9" |
13' 11" |
14' |
| Wheel Tread Width |
Adj. 90" - 120" |
120" |
128" |
| Loaded Tongue Weight |
2500 lbs. |
2800 lbs. |
3000 lbs. |
| Approx. Wgt. |
5500 lbs. |
7900 lbs. |
8500 lbs. |
|
